General Description

* Description

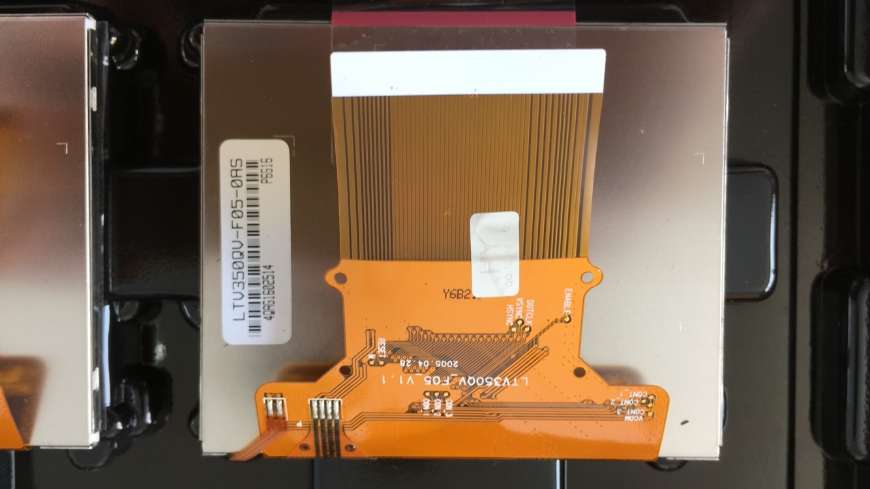

LTV350QV-F05 is a TMR(Transmissive with Micro Reflective) type  color  active  matrix  TFT (Thin  Film Transistor) liquid crystal  display  (LCD) that  uses amorphous silicon TFT   as a switching devices. This model  is  composed  of  a  TFT-LCD  module,  a  driver  circuit and a back-light unit and a touch screen panel(TSP).

The resolution of a 3.5" contains 320RGBx240 dots and can display up to 16.7M colors.

* Features

- Transmissive with Micro Reflective type and back-light with six LEDs are available.

- Visible in outdoor & back-light off condition with reflectivity.

- Using the Touch Screen Panel(Film to Film-Glass type).

- TN(Twisted Nematic) mode.

- Line inversion mode with stripe type.

- 24bit RGB Interface + Serial Peripheral Interface(SPI)

- DE(Data Enable, Dotclk) mode, SYNC(Vsync, Hsync, Dotclk) mode

- Gate Driver IC embeded on Panel(Double ASG)

* Applications

-  Display terminals for DSC(Digital Still Camera), PMP(Portable Multimedia Player) application products.
