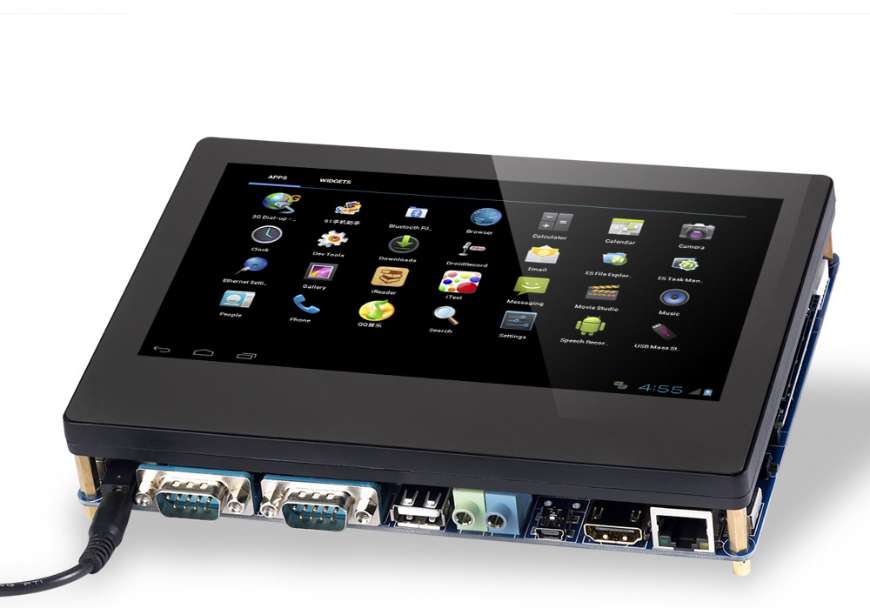

Smart210 (Tiny210V2) Board + 7.0 inch Capacitive Touch Screen 800*480 (Standard Ver.)

ATTENTION

Confusion in order to avoid and tiny210 core board product name, now tiny210v2 renamed for Smart210 and match the new floor Smart210SDK-1305, also can be compatible with the use of Laodicea board Tiny210V2SDK-1301. Tip: just modify the name, the other all (including wiring, size and interface, production process, etc.) are not changed

Smart210

Smart210 (Tiny210V2) is a high performance Cortex-A8 core board, used for SAMSUNG S5PV210 as the main processor, the operating frequency can be up to 1GHz, inside the S5PV210 integrated PowerVR SGX540 high performance graphics engine, support for 3D graphics run smoothly, and can play 1080p HD video size.

Tiny210V2 core board is used for 2.0mm Pitch Double headers (P1, P2, P3, P4), it a higher degree of integration of some, in integrated network card and sound card chip, and leads to the more CPU pin functions (a total of 208Pin) and therefore a greater size (74x55mm). The P1 and P2 headers standard welding, they already contains the most commonly used functions; P3 and P4 air welding, is convenient for the user to expansion is developed using. Tiny210V2 standard 512M and 2GB flash memory (MLC), and optional 256M/512M/1GB flash memory (SLC).

Parameters

1 CPU: SAMSUNG S5PV210, Cortex-A8, running frequency is 1GHz

2 DDR2 RAM: 512MB DDR2 RAM @ 200Mhz; 32bit data bus

3 FLASH: 512M SLC NAND FLASH

4 Pin Interface: 2x60 pin 2.0mm space DIP connector; 2x24 pin 2.0mm space DIP connector

5 Onboard Resources: 4xUser LED (Green); Supply Voltage from 2V to 6V; Ethernet Chip: DM9000AEP; Codec Chip: WM8960

6 PCB Size: 74x55x10 (mm), 6 level high density circuit board

7 Software

Superboot-210

Android 2.3 + Linux-2.6.35

Android 4.0 (Linux-3.0.8 Kernel source code)

Linux2.6.35+ Qtopia-2.2.0 + Qtopia4-Phone + QtE-4.8.5

WindowsCE.NET 6.0

Development Board Feature

1, the original Samsung Android 4.0

2, exclusive support for HDMI multi system independent output, or LCD synchronous output.

3, HDMI audio and video mixed output

4, with the progress bar of the Superboot fast brush mode.

5, 7 inch capacitive screen and custom

Smart210 Standard Base Board

Smart210 3G Monitor Base Board

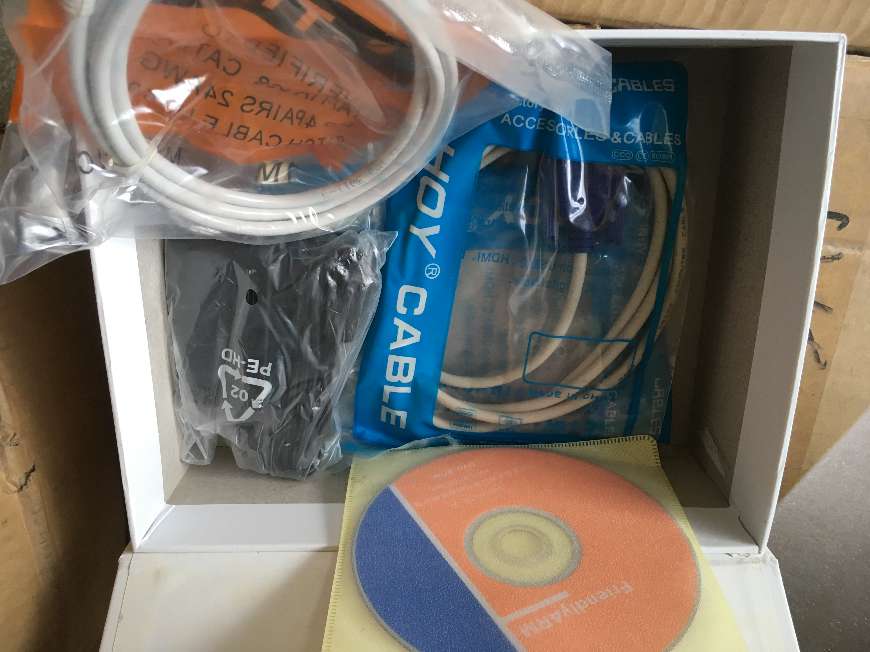

Shipping List (Standard Version)

1* Smart210 Core Board (Tiny210V2) 512 DDR2 512M SLC FLASH

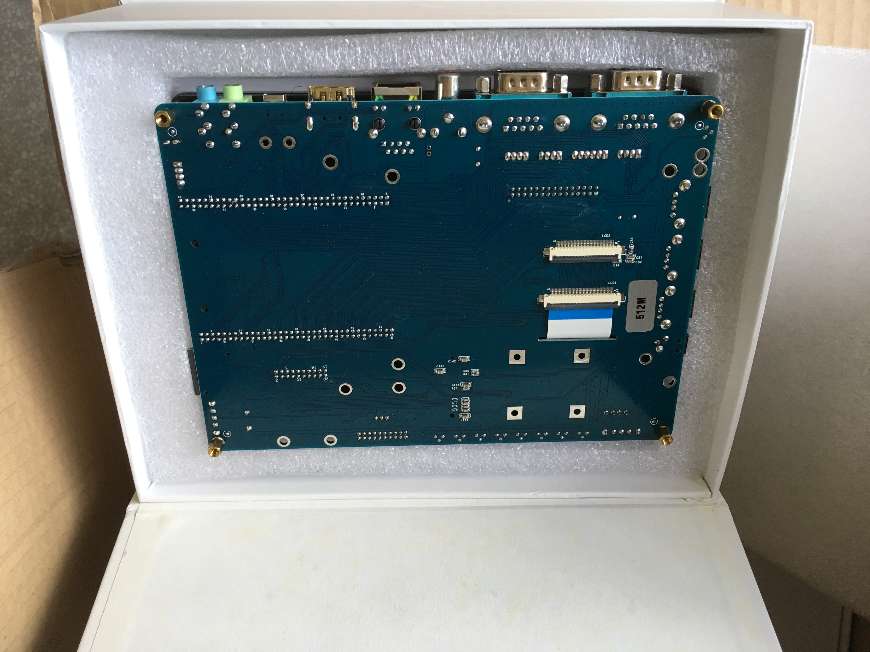

1* Development Board

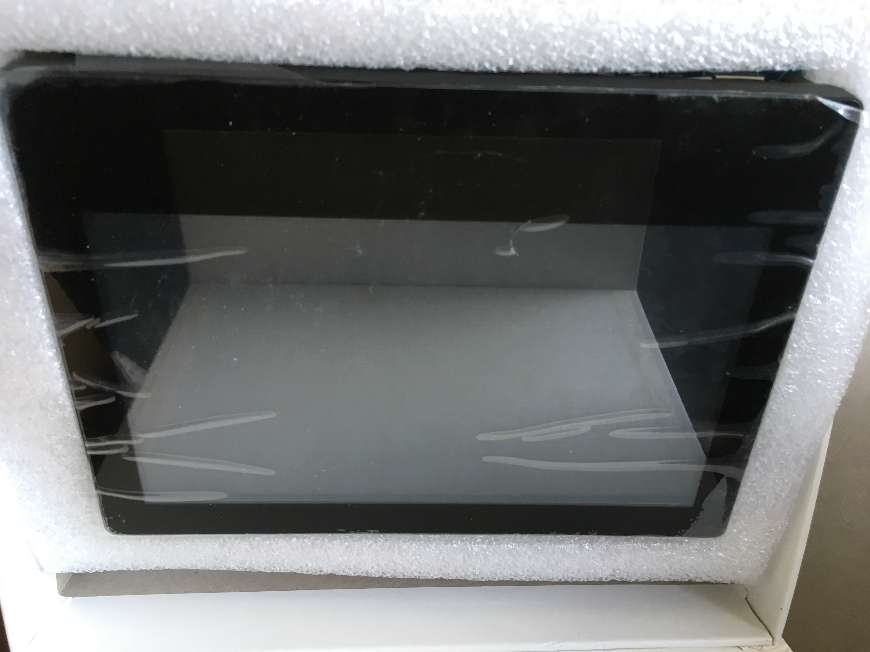

1* 7 inch LCD Capacitive Touch Screen 800*480

1* Serial Line

1* MiniUSB Line

1* Network Line

1* 5V/2A Power Adapter

Software

1 Android 4.0 System

2 Android 2.3 System

3 Linux System

4 WinCE System
